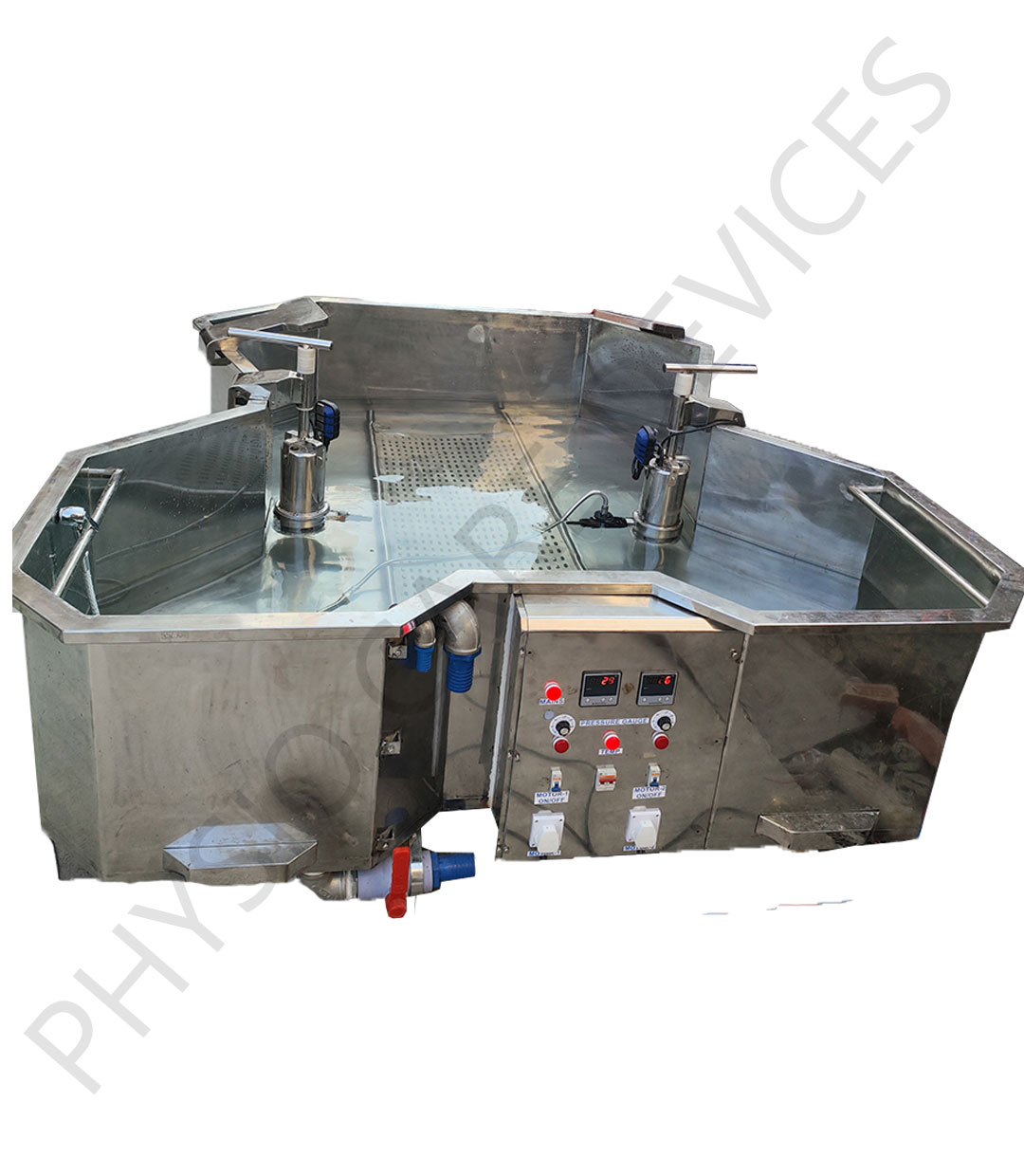

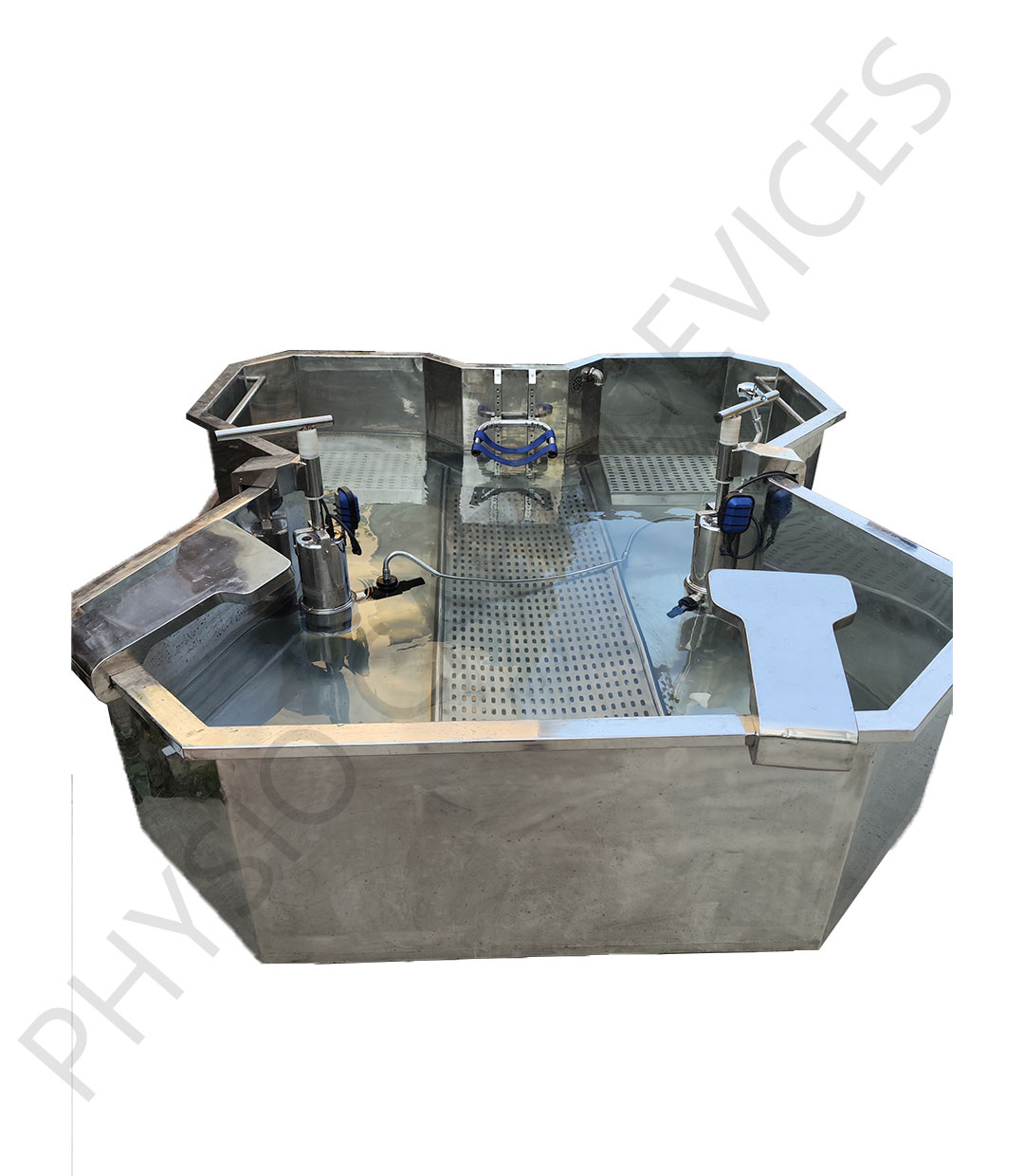

Dimension- 270 cm x 190 cm x 87cm high. With double motar
Model No pcd 194B
SPECIFICATIONS:
Construction: Made of heavy stainless steel sheet (2mm & 1.5mm thick), electrically Argon welded tank is shaped to Butterfly modified figure.
Overall dimension: 266cm x 196cm x 86cm high.
Inside dimension: Length to inset 218 cm. Width upper parts 183cm. Width of middle narrow part Width of lower part 135cm. Depth is 56cm.
Turbine: Two, Turbine Ejector-Aerator are powered by the vertically mounted 1/2 hp electric motor & mounted on a spring loaded turbine elevator for height adjustment.
Turbine Carriages. TWO carriages fitted with ball bearings for easy movement of Turbines around the tank.
Accessories: One digital thermometer, 2 water inlets, drain and overflow pipes with all necessary fitting. – Adjustable Stainless Steel Head-Rest, – Stainless Steel Body Stretcher and Sitting seat fitted with nylon cloth.
Finish: Bright polish finish inside the tank with special paint finish from outside.
Combination Drain and Overflow, and a Filler Spout
Input Power:- 220 -240 V ~; 50/60 Hz
Permanent Installation: Designed for fixed setups with direct connections to hot and cold water supplies, overflow, and drainage systems.
Accessories: Includes adjustable stainless steel headrests, body stretchers, and seating fitted with nylon cloth for patient comfort.
Therapist Accessibility: Recessed areas at the head and sides allow therapists to easily monitor and assist patients during therapy sessions.
Dual Turbine System: Equipped with two turbine ejectors powered by ½ HP motors, mounted on ball-bearing carriages for smooth operation and adjustable water agitation
