• Therapy mode : cont ,burst, , pwm c, pwm I ,surge , & sweep
• Four channels , isolated between channels
• Amplitude current : 0-80mA peak to peak into 500 ohm load each Channel
• Frq : Adjustable 2,20,40, 80,120,150
• Treatment Duration:- 1 – 60 min in 1 min increments

Alarms  Audio Alarm at the end of Treatment with auto cut off

• Patient safety should be available with no output while intensity is high by switching on the machine.
• Display : seven segment digital display for timer
• LED display eachchannel for pulse mode and pulse frequency
• Input Power:- 220 -240 V ~; 50/60 Hz
• Weight :- 2.5 kg
• Brand : dynopulse

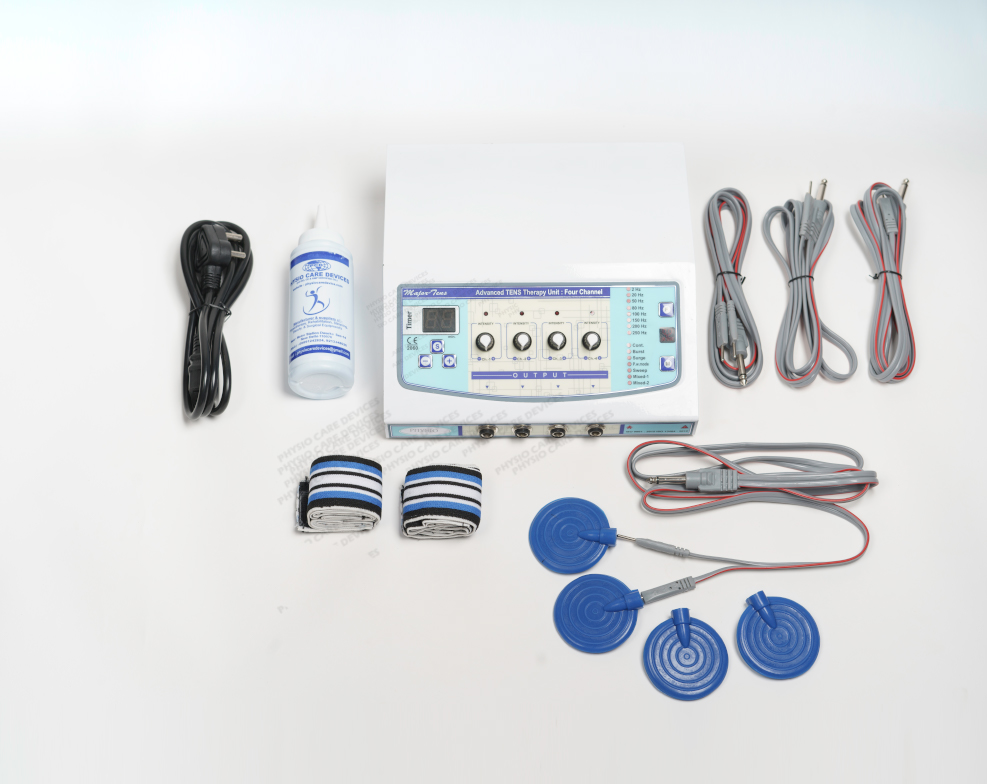

STANDARD ACCESSORIES

• Main Unit : 01 No.
• Tens carbon electrode : 8 roun electrode 4 cm dia
• Tens out put lead : 4 no.

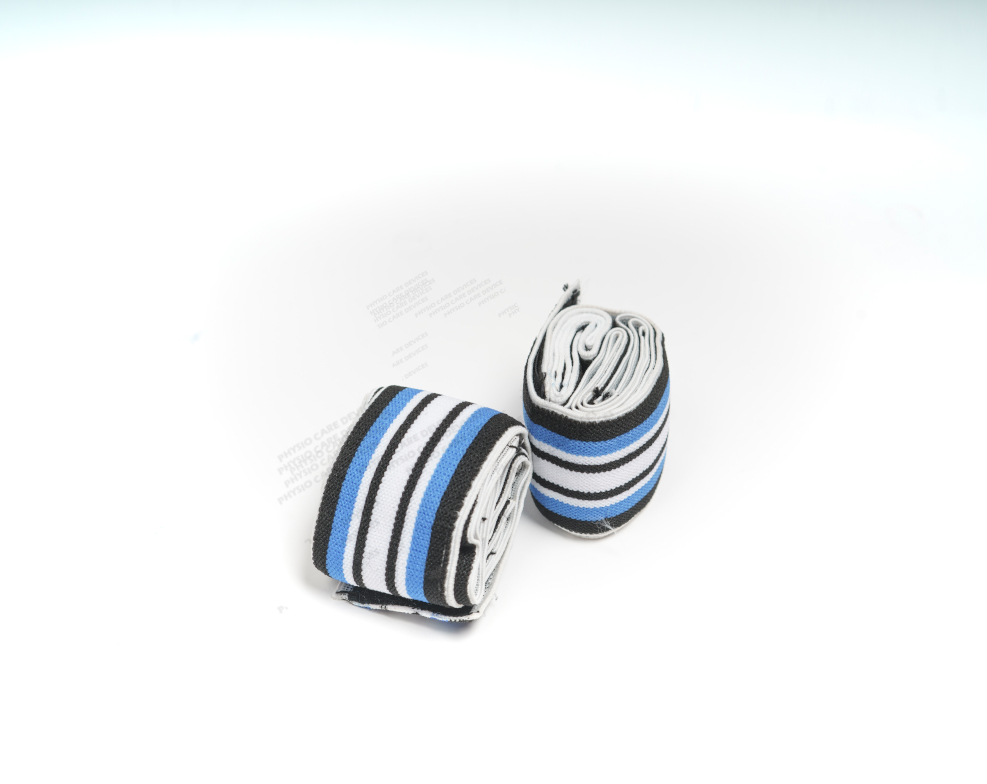

• Fixing elastic belts: 02 set. ( each set three different size of belt small, medium ,& large )
• Power cable provided for different countries: 01 No.
• Carry bag : 1 No

Jel bottale : 1No
