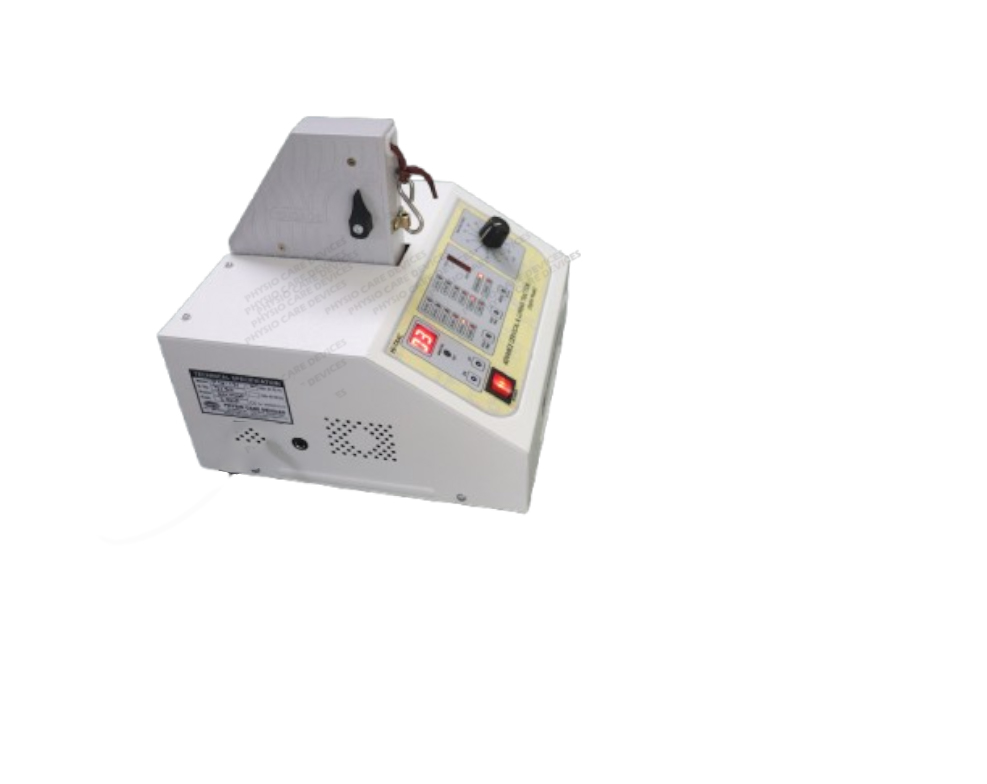

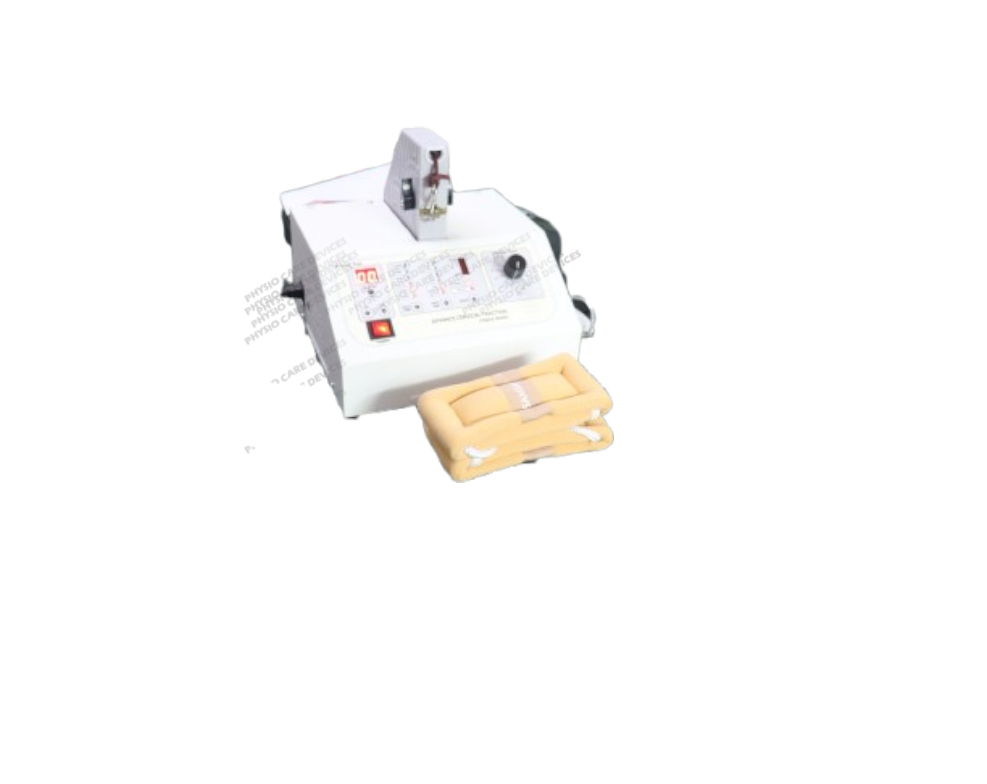

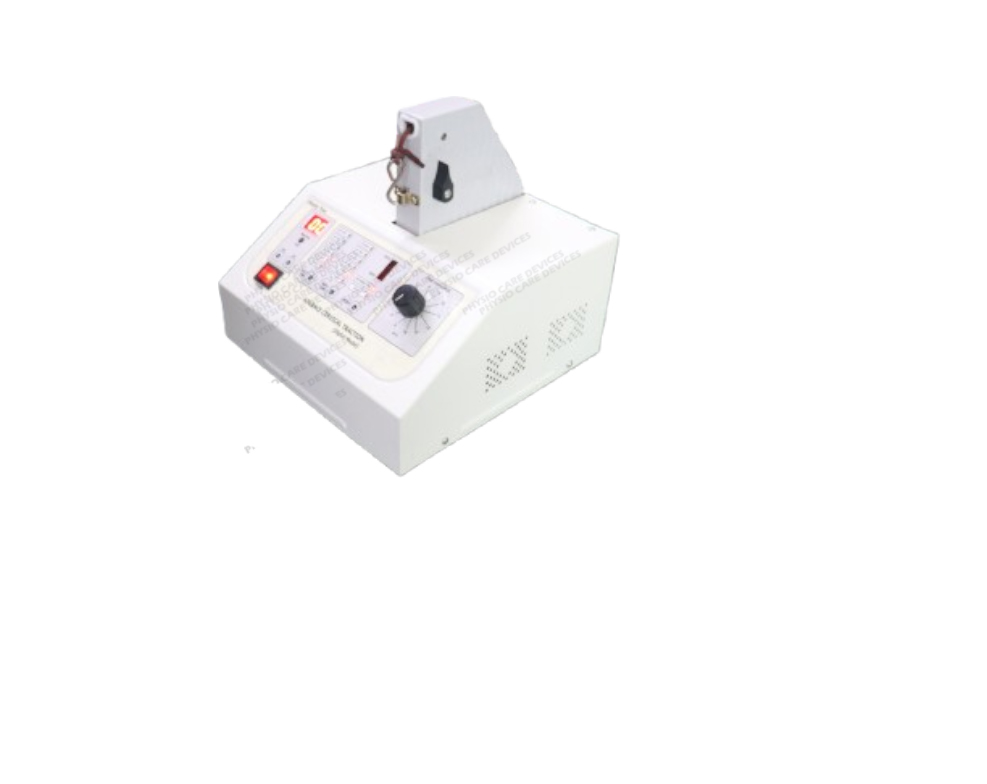

Model No Pcd – 132A
| Model | PCD-132A |
| Application | Cervical and Lumbar Traction |
| Traction Force | 5 kg to 45 kg (lumbar); 3 kg to 15 kg (cervical) |
| Traction Doubler | Increases lumbar force to up to 90 kg |
| Traction Modes | Static and Intermittent |
| Hold Time | 10, 20, 30, 40, 60, 80 seconds (selectable) |
| Rest Time | 1, 5, 10, 15, 20, 30 seconds (selectable) |
| Timer | Digital, adjustable 0–99 minutes with auto shutoff |
| Display | Digital LCD panel for timer and mode settings |
| Motor | Heavy-duty noiseless motor |
| Control Interface | Soft-touch membrane keys |
| Power Supply | 220V AC, 50 Hz |
| Power Consumption | Approx. 85 Watts |
| Dimensions (L×W×H) | 28 cm × 31 cm × 30 cm (approx.) |
| Weight | Approx. 10–12 kg |
| Safety Features | Emergency patient safety switch, audible alarm |
| Accessories Included | Cervical collar, pelvic belt, spreader bar, traction doubler, patient switch, mains cable |
